WZ30-25 Backhoe Loader
WZ30-25 Backhoe Loader
Classification:
Key words:
- Product Description
-

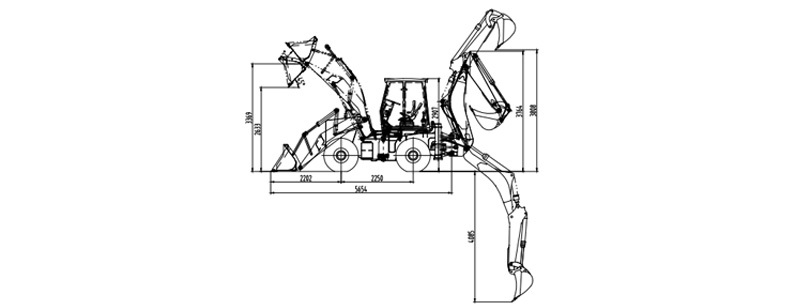

Product appearance size
Product advantages
● Adopt central hinge, small turning radius, flexible operation;
The use of hydraulic transmission, four-wheel drive, stable performance, high reliability;
● The frame is all made of manganese steel plate, with high strength and long life.
Parameter information
Engine Guo Er Yuchai Wheelbase 2250mm Wheelbase 1640mm Minimum ground clearance 300mm Operating weight 7640KG Wheel edge deceleration type Primary wheel edge deceleration Rated bridge load 7.5t Transport dimensions L×W×H mm 5910 × 2268 × 3760 Rated bucket capacity 1.2m3 Maximum unloading height 2742mm Unloading distance 1062mm Maximum lifting capacity 2500KG Maximum digging force 38KN Rated digging bucket capacity 0.3m3 Maximum excavation depth 4082mm shoveling depth 52mm Digging bucket back to corner 190o Stick digging force 44KN Excavation force of bucket 46.5KN Bucket Lifting Time 5.4S Bucket descent time 3.1S Bucket unloading time 2.0S Engine Model CYD YC4A105Z-T20 Engine form In-line, direct injection, four-stroke, direct injection combustion chamber Number of cylinders-inner diameter * stroke 4-102 × 120 Rated power 75KW Exhaust volume 3.9L Minimum fuel consumption rate ≤ 216 g/km.h Rated speed 2200r/min Maximum torque ≥410N.M/1500r/min Steering gear model BZZ5-250 Steering angle ±36 o Minimum turning radius 5018mm System pressure 18Mpa Cooling mode Oil cooling pressure cycle Torque Converter Model YJ280 Type of torque converter Single-stage, single-phase three-element Maximum efficiency 84.40% Inlet pressure 0.4Mpa-0.55 Mpa Outlet pressure 1.2Mpa-1.5 Mpa Gearbox form Fixed shaft type power shift Clutch operating oil pressure 1373Kpa-1569 Kpa Bridge type Feicheng Main drive form double-stage deceleration type Gear 2nd forward gear, 2nd reverse gear Maximum traction 39KN Tire specifications 16/70-20 Front wheel air pressure 0.22 Mpa Rear wheel air pressure 0.22 Mpa Parking/emergency braking Control force to apply the brake. Hand control force to release the brake. Service brake Gas cap oil caliper disc brake external self-adjusting self-balancing Tank capacity 90L Standard Product Description Weichai Guo Er 70KW (or Yuchai Guo Er 75KW) engine, domestic gearbox, Qingzhou drive axle, Jinan Quancheng pump, Eaton steering gear, Eaton priority valve, front-loading and rear-digging pilot control, reversing image, cab warning light, warm air, tire 16/70-20,A/H-type outrigger, standard triple valve and pipeline, reserved breaking hammer pipeline, standard bucket, standard rear digging arm
