936 loader
936 loader
Classification:
Key words:
- Product Description
-

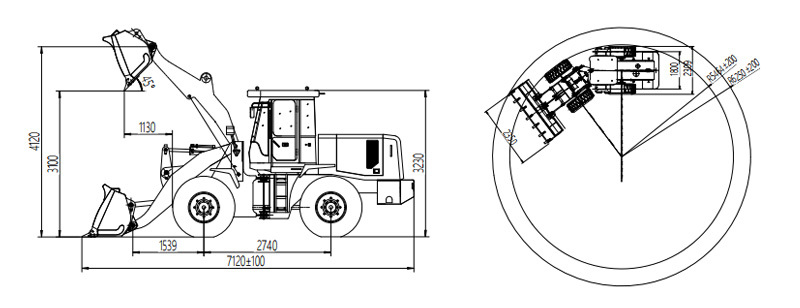

Product appearance size
Product advantages
● High service life, high carrying capacity and high working speed;
● Modular radiator guarantees 24-hour uninterrupted operation;
● Efficient and reliable hydraulic system.
Parameter information
Engine Guo Er Dongkang Guo Er Weichai Guo San Weichai Rated load 3000kg 3000kg 3000kg Weight of whole machine 10000kg 10000kg 10000kg Bucket capacity 1.8-2.5m3 1.8-2.5m3 1.8-2.5m3 Maximum traction 98KN 98KN 98KN Maximum digging force 120KN 120KN 120KN Maximum climbing ability 30° 30° 30° Maximum unloading height 3100mm 3100mm 3100mm Maximum unloading distance 1130mm 1130mm 1130mm Overall dimensions (L×W×H) 7120*2375*3230mm 7120*2375*3230mm 7120*2375*3230mm Minimum turning radius 5464mm 5464mm 5464mm Engine Model DF Cummins 6BT5.9-C130 Deutz enginesWP6G125E22 DEUTZ WP6G125E331 Engine form In-line, water-cooled, four-stroke, direct injection In-line, water-cooled, four-stroke, direct injection Electronically controlled high-pressure common rail (country III) Number of cylinders-bore * stroke 6-108*125 6-108*125 6-108 × 125mm Rated power 97kw-2400r/min 92kw 92kw Maximum torque 500N.m 500N.m 500N.m Minimum fuel consumption rate ≦210g/kw.h ≦210g/kw.h ≦210g/kw.h Type of torque converter YJ315-X YJ315-X YJ315-X Gearbox type Fixed shaft constant meshing type Fixed shaft constant meshing type Fixed shaft constant meshing type Number of gears 4 forward gears, 2 reverse gears 4 forward gears, 2 reverse gears 4 forward gears, 2 reverse gears Maximum speed 38km/h 38km/h 38km/h Main reduction type Spiral bevel gear primary reduction Spiral bevel gear primary reduction Spiral bevel gear primary reduction Wheel edge deceleration type first-order planetary deceleration first-order planetary deceleration first-order planetary deceleration Wheelbase (mm) 2740mm 2740mm 2740mm Minimum ground clearance 400mm 400mm 400mm System working pressure 18MPa 18MPa 18MPa three and 9.3±0.5s 9.3±0.5s 9.3±0.5s Service brake Gas top oil caliper disc four-wheel brake Gas top oil caliper disc four-wheel brake Gas top oil caliper disc four-wheel brake Parking brake Manual insert type Manual insert type Manual insert type Specifications 17.5-25 17.5-25 17.5-25 Front wheel air pressure 0.4Mpa 0.4Mpa 0.4Mpa Rear wheel air pressure 0.35Mpa 0.35Mpa 0.35Mpa Standard Product Description Central handover frame, third-generation cab, Weichai No.2 engine, North Union box, Feicheng Bridge, Jinan Quancheng pump, Eaton steering gear, Eaton priority valve, mechanical operation; 17.5-25 tires, 1.8 square meters, warm air.
