956 loader
956 loader
Classification:
Key words:
- Product Description
-

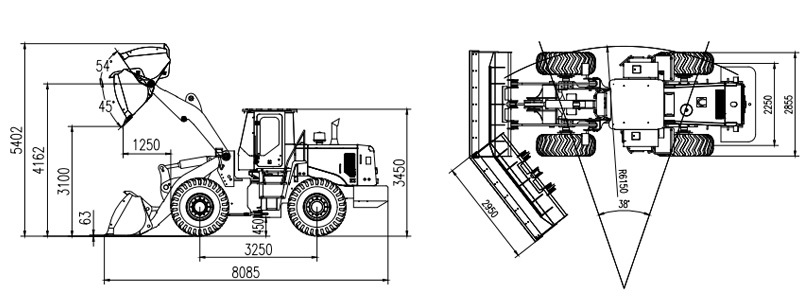

Product appearance size
Product advantages
● High service life, high carrying capacity and high working speed;
● Modular radiator guarantees 24-hour uninterrupted operation;
● Efficient and reliable hydraulic system.
Parameter information
Engine State II Cummins Hang Tooth Country 2 Shangchai Hang Teeth State II Weichai ZF200 State 2 Weichai North Union Guo Er Weichai Hang Teeth Rated load 5000kg 5000kg 5000kg 5000kg 5000kg Weight of whole machine 16500kg 16500kg 16500kg 16500kg 16500kg Bucket capacity 3m3 3m3 3m3 3m3 3m3 Maximum traction 145KN 145KN 168KN 168KN 145KN Maximum digging force ≥ 175KN ≥ 175KN ≥ 170KN ≥ 170KN ≥ 175KN Maximum climbing ability 30° 30° 30° 30° 30° Maximum unloading height 3142mm 3142mm 3142mm 3142mm 3142mm Maximum unloading distance 1250mm 1250mm 1250mm 1250mm 1250mm Overall dimensions (L×W×H) 8085 × 2965 × 3450mm 8085 × 2965 × 3450mm 8085 × 2963 × 3463mm 8085 × 2963 × 3463mm 8085 × 2965 × 3450mm Minimum turning radius 6732mm 6732mm 6732mm 6732mm 6732mm Engine Model Cummins DF 6CTA8.3-C215-II Shangchai SC11CB220G2B1 Weichai WD10G220E23 Weichai WD10G220E23 Weichai WD10G220E23 Engine form In-line \water cooling \dry cylinder liner \direct injection In-line \water cooling \dry cylinder liner \direct injection In-line \water cooling \dry cylinder liner \direct injection In-line \water cooling \dry cylinder liner \direct injection In-line \water cooling \dry cylinder liner \direct injection Number of cylinders-bore * stroke 6-114 × 135mm 6 × 121 × 152mm 6-126 × 130mm 6-126 × 130mm 6-126 × 130mm Rated power 160kw--2200r/min 162kw--2200r/min 162kw--2000r/min 162kw--2000r/min 162kw--2000r/min Maximum torque 908N.m 920N.m 860N.m 860N.m 980N.m Minimum fuel consumption rate ≤ 229g/kw.h ≤ 230g/kw.h ≤ 215g/kw.h ≤ 215g/kw.h ≤ 212.7g/kw.h Type of torque converter Single-stage two-phase four-element Single-stage two-phase four-element ZF 4WG200 YJ375 Single-stage two-phase four-element Gearbox type power shift planetary structure power shift planetary structure ZF 4WG200 Power shift straight tooth constant mesh power shift planetary structure Number of gears 2 in forward gear and 1 in reverse gear 2 in forward gear and 1 in reverse gear 4 forward gears, 3 reverse gears 4 forward gears, 4 reverse gears 2 in forward gear and 1 in reverse gear Maximum speed 38km/h 38km/h 39km/h 39km/h 38km/h Main reduction type Spiral bevel gear primary reduction Spiral bevel gear primary reduction Spiral bevel gear primary reduction Spiral bevel gear primary reduction Spiral bevel gear primary reduction Wheel edge deceleration type first-order planetary deceleration first-order planetary deceleration first-order planetary deceleration first-order planetary deceleration first-order planetary deceleration Wheelbase (mm) 3250mm 3250mm 3200mm 3200mm 3250mm Wheel track (mm) 2250mm 2250mm 2250mm 2250mm 2250mm Minimum ground clearance 450mm 450mm 450mm 450mm 450mm System working pressure 18MPa 18MPa 18MPa 18MPa 18MPa Boom Raise Time 5.1s 5.1s 5.1s 5.1s 5.1s three and 9.3s 9.3s 9.3s 9.3s 9.3s Diesel tank capacity 292L 292L 292L 292L 292L Automatic Bucket Leveling Function Yes. Yes. Yes. Yes. Yes. Service brake Gas top oil caliper disc four-wheel brake Gas top oil caliper disc four-wheel brake Gas top oil caliper disc four-wheel brake Gas top oil caliper disc four-wheel brake Gas top oil caliper disc four-wheel brake Parking brake air brake type brake air brake type brake air brake type brake air brake type brake air brake type brake Specifications 23.5-25 23.5-25 23.5-25 23.5-25 23.5-25 Front wheel air pressure 0.4Mpa 0.4Mpa 0.4Mpa 0.4Mpa 0.4Mpa Rear wheel air pressure 0.35Mpa 0.35Mpa 0.35Mpa 0.35Mpa 0.35Mpa Standard Product Description Central handover frame, Weichai No.2 engine 162KW, pilot control, air conditioning, Feicheng bridge, fixed-axis Beilian gearbox (forward 4th gear, backward 4th gear) or planetary Hangzhou gear gearbox (forward 2nd gear and backward 1st gear), Jinan Quancheng pump, Eaton steering gear and priority valve, 23.5-25 tires, bucket 3rd.
